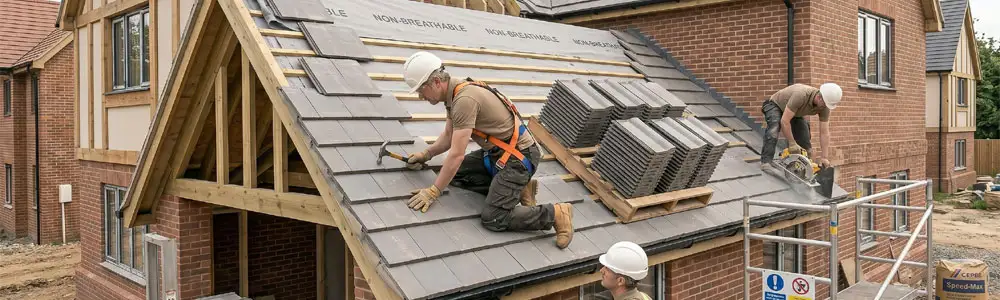

Roof tiling
Home Calculators Roof Tile Calculator

Roof Tile Calculator

Calculate field tiles, ridge tiles, hip tiles and battens for any roof with multiple slopes. Supports concrete interlocking, clay plain, pantile and more.

Roof Tile Calculator

Enter each roof slope separately, add ridge and hip lengths, and get a full material breakdown

Roof Slopes

Standard concrete interlocking tile - approx 10 per m². Check the manufacturer's spec sheet for the exact gauge for your pitch.
From the product data sheet - varies by tile size and batten gauge
The centre-to-centre spacing between battens - set by the tile manufacturer
10%
10% is standard; allow 15% for complex roofs with many hips and valleys
Measure along the ridge line and each hip rafter. Leave blank if not applicable.
Add all hip rafter lengths together
Typical tiling batten: 25 × 50mm or 25 × 38mm
Minimum 150mm side lap, 300mm at eaves and ridge

Job Costing

Enter costs in your local currency.

Results

Total Roof Area
-
m²
Field Tiles
-
inc. waste
Battens
-
linear metres
Felt Rolls
-
rolls needed

Slope Breakdown

Slope Eaves Length Rafter Length Area Tiles Battens (lm)

Tile Types

  • Concrete interlocking - The most common type in the UK. Large single-lap tiles, approx 10 per m². Lightweight and low cost.
  • Concrete plain - Smaller double-lapped tiles, approx 60 per m². Suitable for pitches from 35°.
  • Clay plain - Traditional double-lapped clay tile. 60-65 per m². More expensive than concrete but longer-lasting.
  • Clay pantile - S-profile single-lap tile, approx 14 per m². Common in eastern England and coastal areas.
  • Clay Roman - Half-round roll profile. Approx 11 per m². Popular in Mediterranean-style architecture.
  • Fibre cement slate-effect - Modern alternative to natural slate. Approx 22 per m². Lightweight and uniform.

Measuring Tips

  • Eaves length - Measure horizontally along the bottom edge of each slope (the guttering line)
  • Rafter length - Measure along the slope itself from eaves to ridge - not the horizontal span
  • Ridge length - Measure the ridge board from end to end
  • Hip length - Measure along each hip rafter (the diagonal corners of a hipped roof) and add them together
  • For a simple gable roof: two slopes of equal size, no hips
  • For a hipped roof: four slopes, measure all four hip rafters and add together

Batten Gauge

Batten gauge (spacing) is determined by the tile manufacturer and depends on roof pitch. Typical values:

  • Concrete interlocking: 300-345mm
  • Clay plain / concrete plain: 90-115mm
  • Pantile: 320-343mm
  • Fibre cement slate: 180-225mm

Always check the product data sheet - the wrong gauge will void the warranty and may cause leaks.
